After I practiced a bit on the broken 1541, I want to get back to my Commodore 8050 dual disk drives. They are massive beasts of steel. Each has a capacity 500KiB per disk side, giving a whopping 2MiB capacity if you swap disk sides.
#commodore #cbm8050 #floppydrive
This is a Commodore 1541C ASSY 251854 Rev A mainboard. It is from a parts drive, where I took of the servo controller for a different drive, and where the read/write head is dead (typical Mitsumi).
#commodore #c1541 #floppydrive
The quadrophonic Floppy orchestra. Using four 1541-II drives. Program by mac of tugcs.
#commodore #c64 #floppydrive
When I was a kid, I didn't know what the “thump thump thump” sound coming from a #floppy #disk drive was.
It also made a buzzing sound, which I figured was the head moving back and forth, but the thump was a mystery.
I'm still not sure, but I'm guessing it's the stepper motor moving by a single track. Am I right?

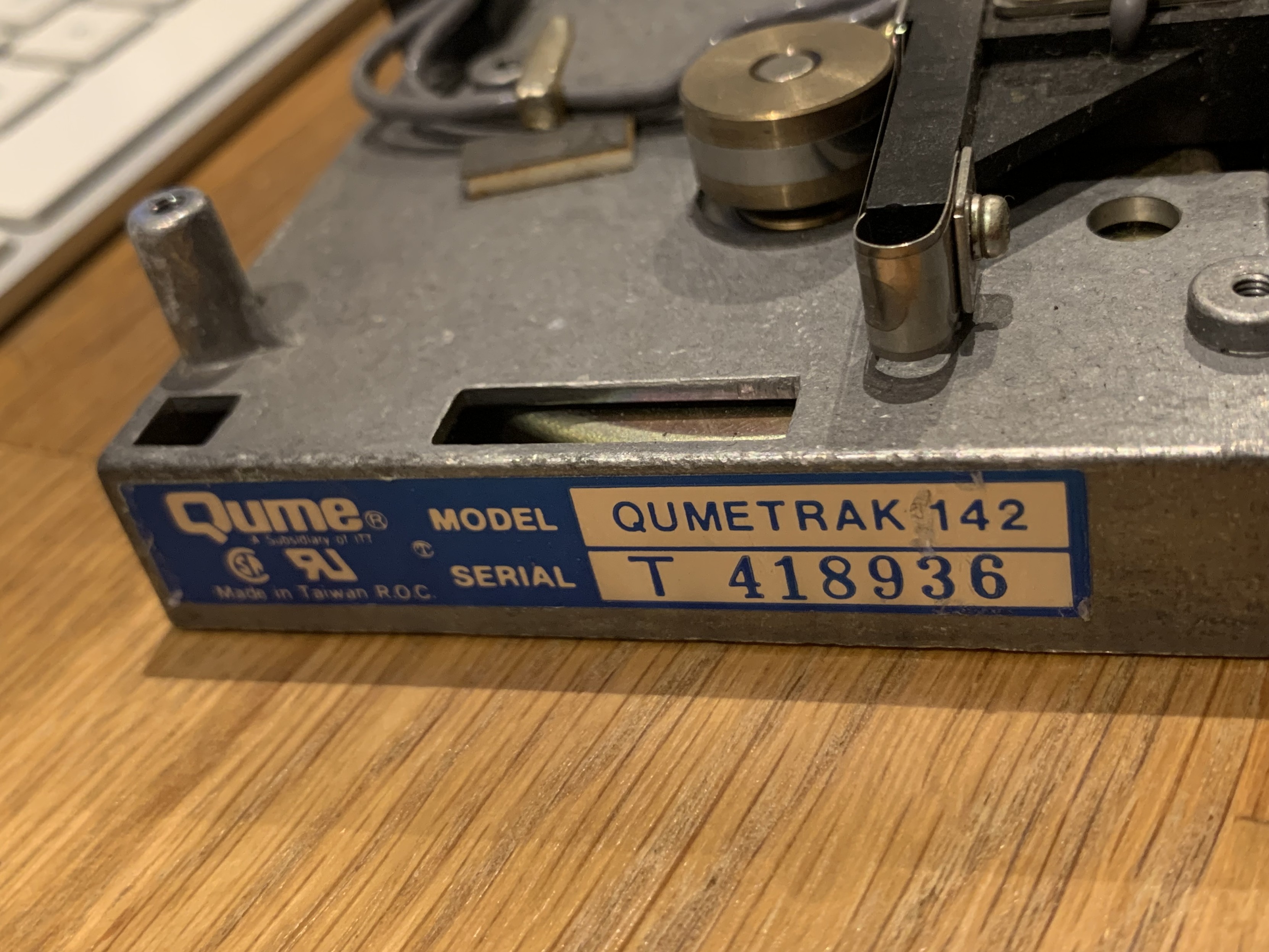

For Christmas from my Secret Santa I got a Qumetrak 142 floppy disk drive. It is a DS/DD 5,25" Shugart style drive.
#retrocomputing #floppydrive
FlatMac: Building the 1980’s Apple iPad Concept - The Apple FlatMac was one of those 1980s concepts by designer [Hartmut Esslingers]... - https://hackaday.com/2024/12/07/flatmac-building-the-1980s-apple-ipad-concept/ #3dprintedenclosure #reproduction #floppydrive #machacks #apple
Calling all #Dublin-based #retrocomputing #mastodaine !
Does anyone have a PC with a 5¼ inch #FiveAndAQuarterInch #FloppyDrive, ideally running #Linux, otherwise a #Microsoft #OS or even #GreaseWeazle, that I could use to image some old disks, please?
Sadly, that didn't go to plan. I appear to have killed my ten year old USB #floppydrive. It fails to read any media now, even known-good DOS/Windows-formatted FAT floppies that I'd flawlessly imaged a few years back.
I'll drop a post and some snaps later today outlining my #beltandbraces methods for recovering data on old #AtariST #floppydisks using a #USB #floppydrive, #GNU #ddrescue, #Hatari and the #SidecarTridge hard disk emulation.
The original #floppydrive in my #AtariST is irredeemably broken; the drive head ribbon cable had disintegrated.
The replacement I bought works beautifully so far. I've tested it with known clean floppies, and it's able to format them successfully, and I can copy programs and config from my #sidecartridge C: drive to A: and run from A:. So looking good overall.
Along with the Atari, I received about forty floppy disks. The disk surfaces look clean - no mould or any other dirt - but the cases seem to have evidence of gnawing.
Before subjecting my newly installed floppy drive to these disks, I sampled ten promising-looking disks in order to attempt to ddrescue their data. Only one was successfully recoverable. The rest are entirely unreadable.
Stocked up on LAG570s. I still have a few BA6301, which is the other motor driver used in the Mitsumi 1541s. So I should be able to repair more failing drives.
#commodore #c64 #c1541 #floppydrive
Another broken 1541 is on my desk today. It is a Mitsumi drive, so a dead head is always a possibility. But this one has supposedly a healthy head -- for now! So what could be the issue?
I should really swap the cases of the top and bottom drives! Or what do you think?
And I am still missing a beige ALPS mechanism.
#commodore #c64 #c1541 #floppydrive
Today is the anniversary of the release of the Shugart Minifloppy SA400, the first 5.25" floppy disk drive. August 27, 1976.
I finally got a replacement shell for the broken Mitsumi 1541. It now has a replacement ROM, the dead head bodge, and finally a new shell. It doesn't match the color of the drive mech, but I already have dark brown ALPS drives in beige 1541 cases, so the other way around was still missing. :)
#commodore #c1541 #floppydrive
Some progress with the #Commodore #VC1541 - I added the reset bodge, socketed a few logic chips, and turned it on.
At first, the drive was spinning constantly, but all the logic signals looked fine, including the reset signal.
I then swapped the 6502 from a working 1541-II, and it worked again.
Now, I have a few mechanical issues. An inserted #floppy is thrown out again most times, and the tray doesn't latch in closed position easily.
#retrocomputing #Alps #floppydrive #repair
Good and bad news... the replacement #PSU works, and the repaired PCB seems to work, too.
But the bottom read head is now confirmed dead. I measured the coils directly at the head. Like before, only the erase coil is intact.
#Commodore #C1571 #floppydrive #repair #retrocomputer
After getting the #Commodore #C64 and #C128 running again, the next device to repair is the #C1571.
It had #corrosion and #rust on the main board and the power supply is beyond repairworthiness. I'd replace the latter with a #meanwell RD-35 with 5 and 12 volt output.
One #diode was rusty, a few traces needed #cleaning and five #resistor looked bad. Hope the black hybrid chip is still okay.
Sadly, the lower read head seems to be broken, my work might've been in vain.
#floppydrive #retrocomputer
New video:
Zombie Floppy: How To Revive A Broken 1541 Head
